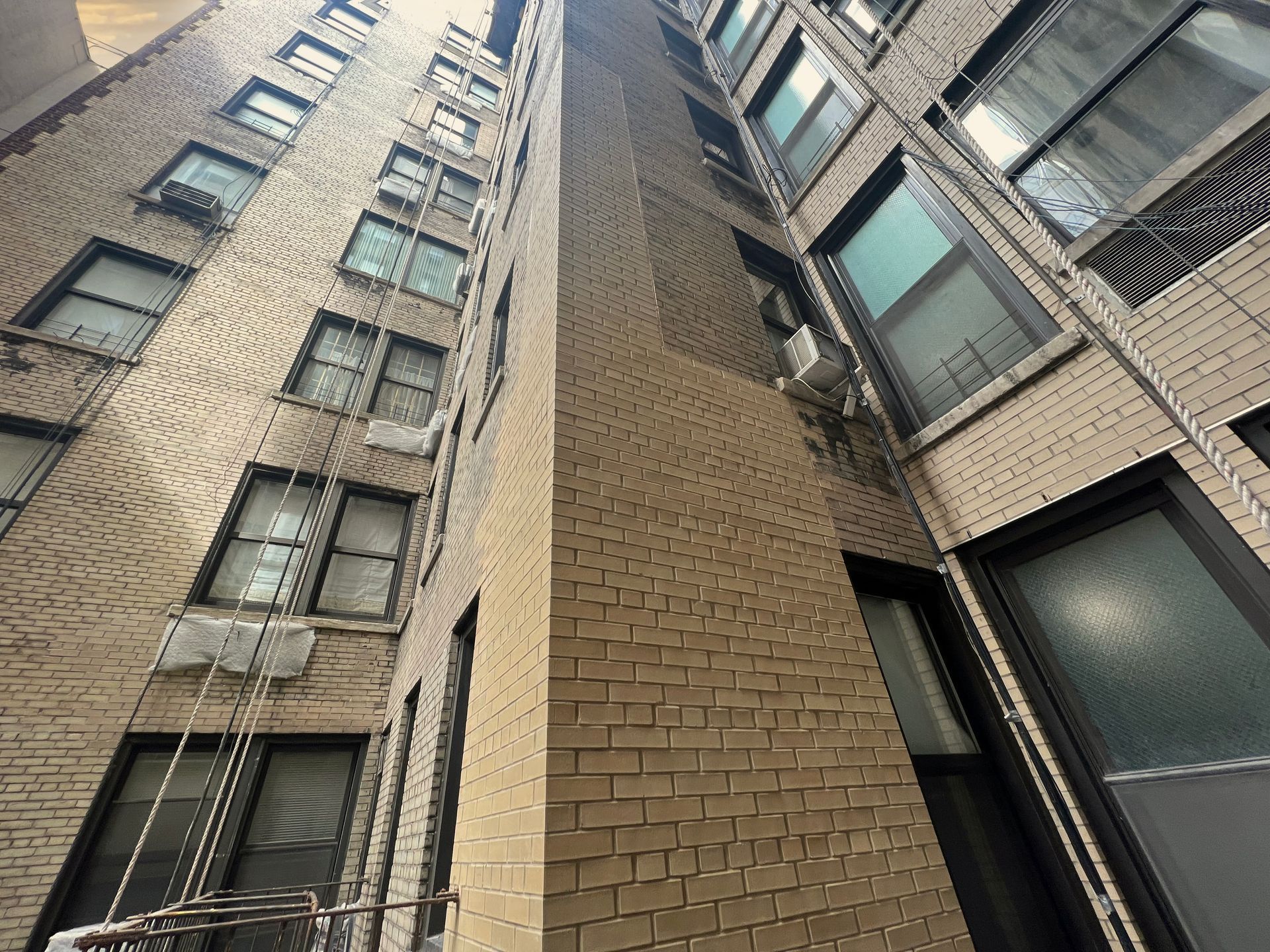

815 Park Avenue is a gorgeous property boasting limestone at the base followed by masonry distinguishable by its own pattern throughout the facade. The top of the building consisted of a cornice band that surrounded the perimeter of the street facade. Although, apart from the beauty, the building was found to be in heavily defected conditions with spalling masonry, window sill deterioration, and a failing cornice that required addressing.
CORNICE STRUCTURAL SYSTEM DESIGN

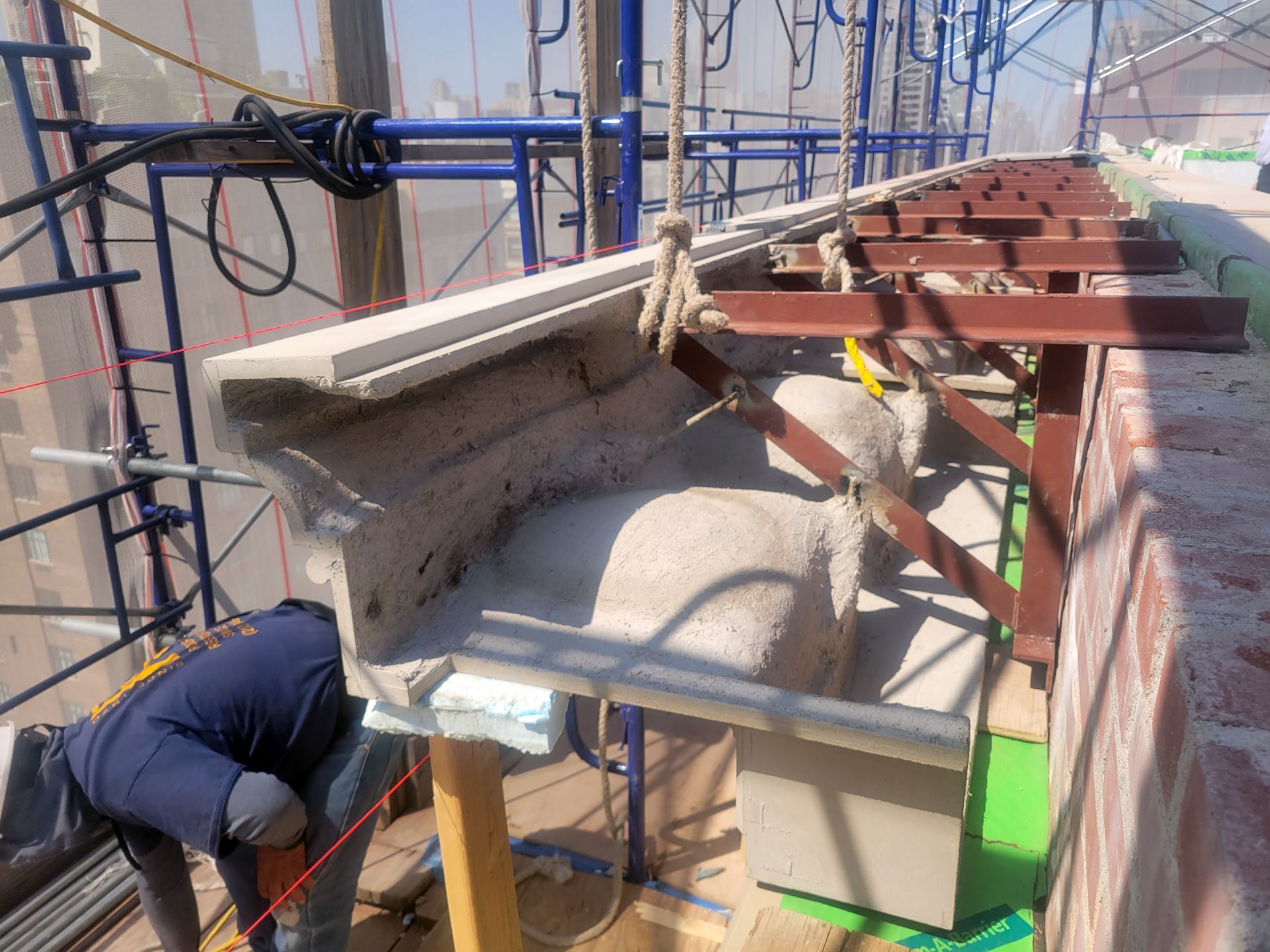

Prior to the installation of the new cornice, STONE designed a new structural frame to support the propsed cornice at the building. The new frame would allow for the cornice to fit seamlessly like a lego piece to replicate the existing, detailed cornice that was.

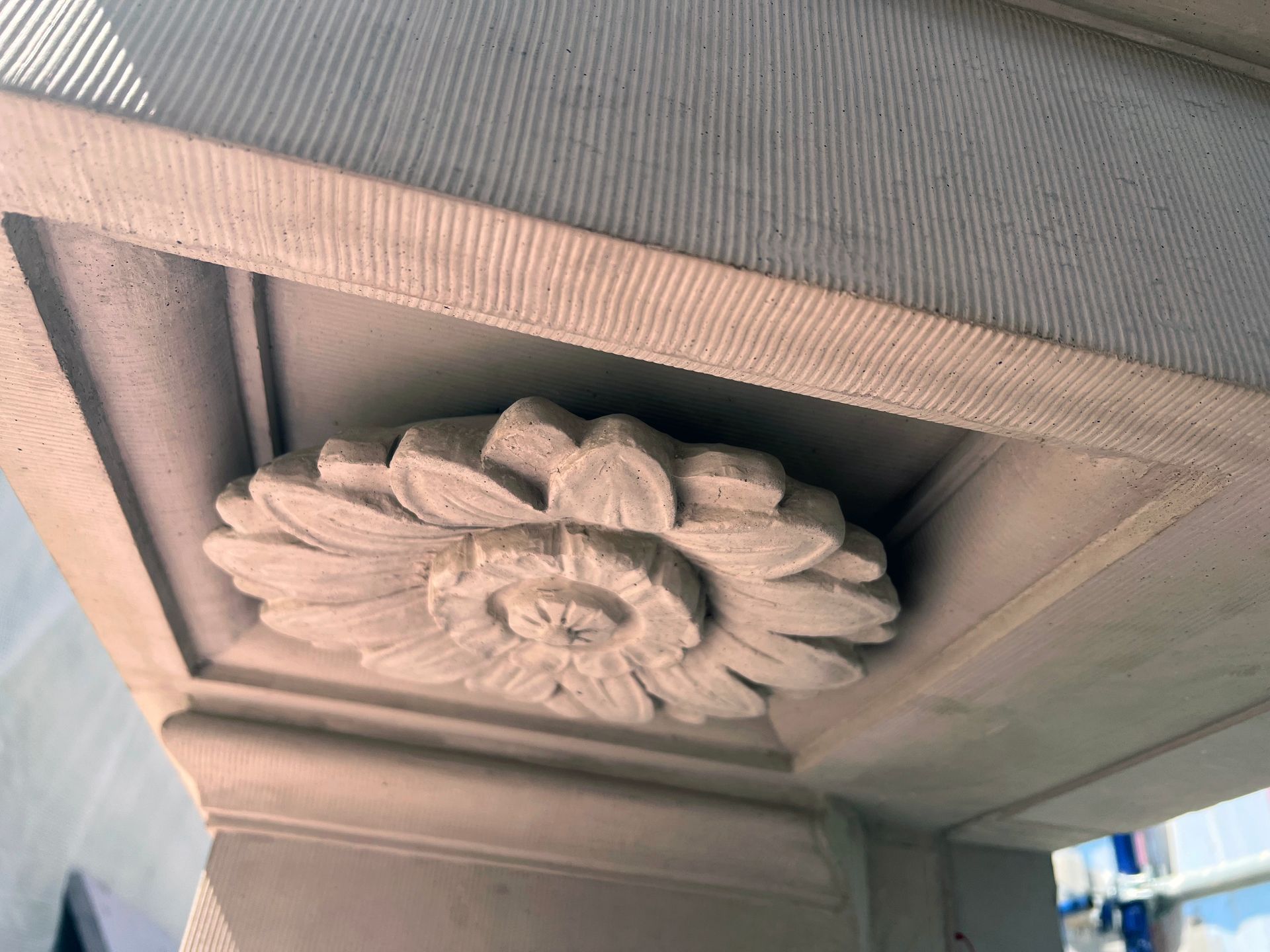

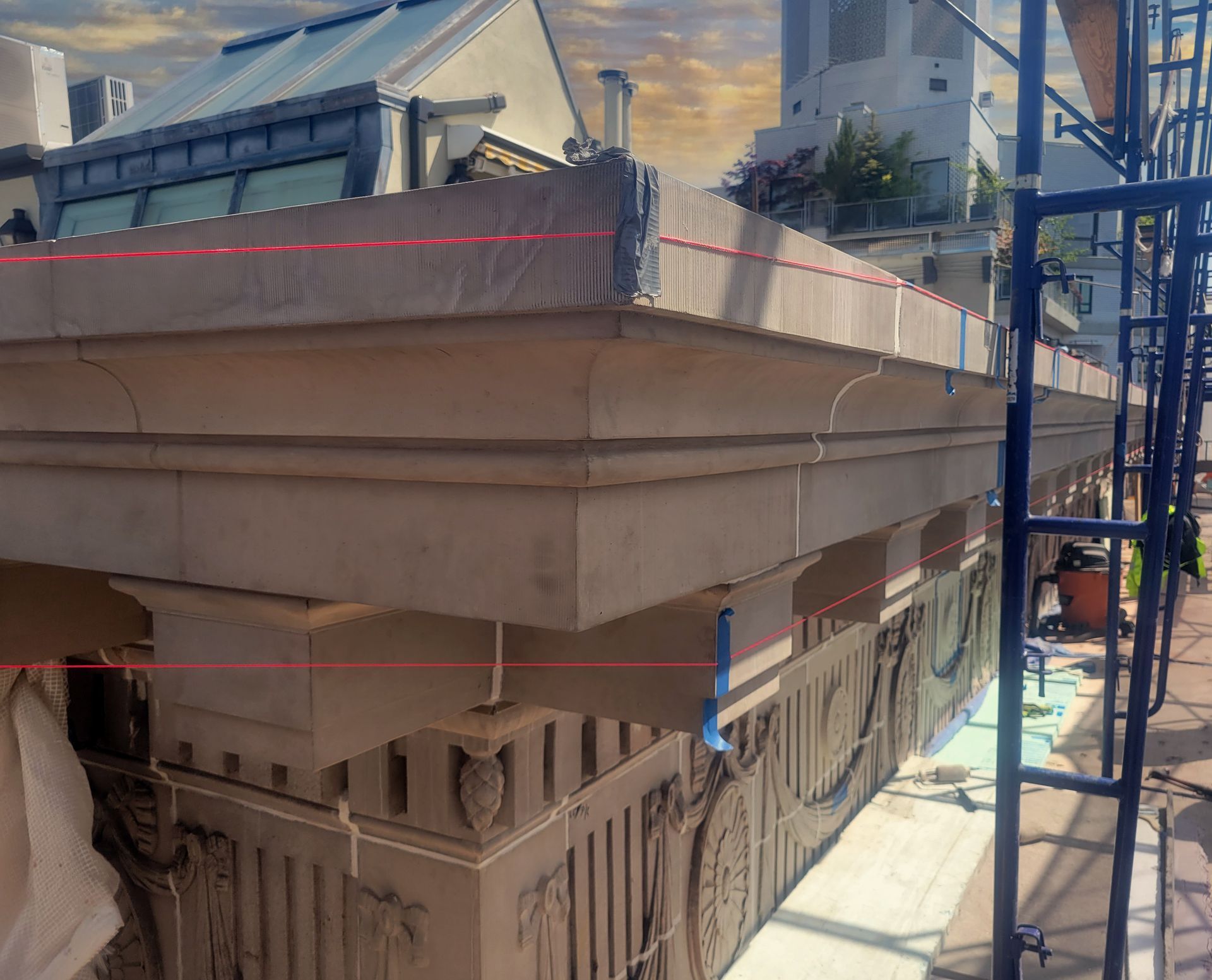

Upon discovery of the existing cornice and its condition to be severe, STONE scoped the replacement of the existing cornice with new GRFC. Working close with LPC, we managed to reduce the load of the new cornice as well as retain the existing look and its beauty.
In addition to cornice replacement, STONE also scoped the replacement of any existing, damaged sections of terra cotta found thoughout our close up visual inspections.

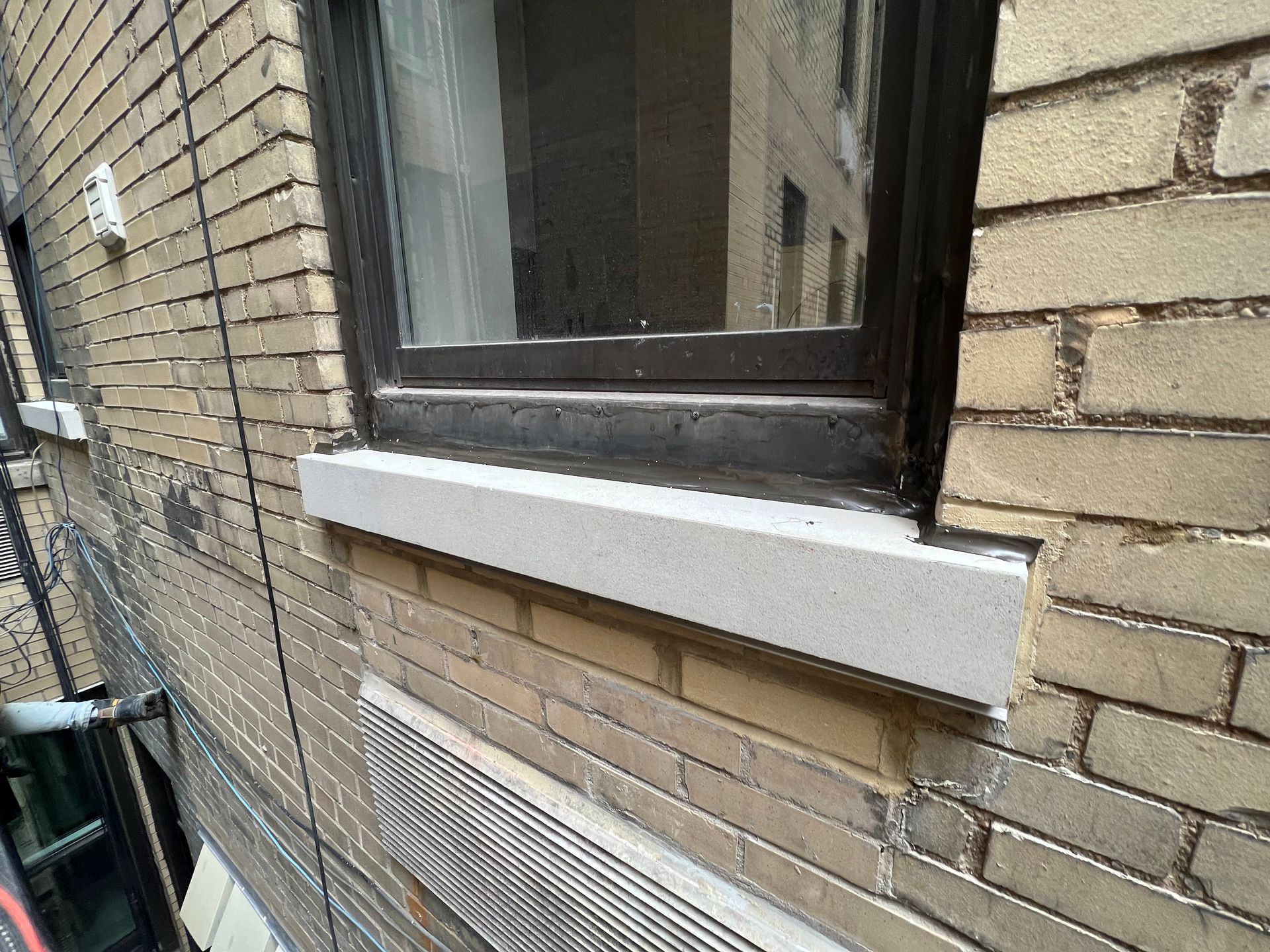

STONE scoped the replacement of any damaged window sills with new tinted pre-cast concrete at secondary facades to aesthetically match the adjacent marble sills.

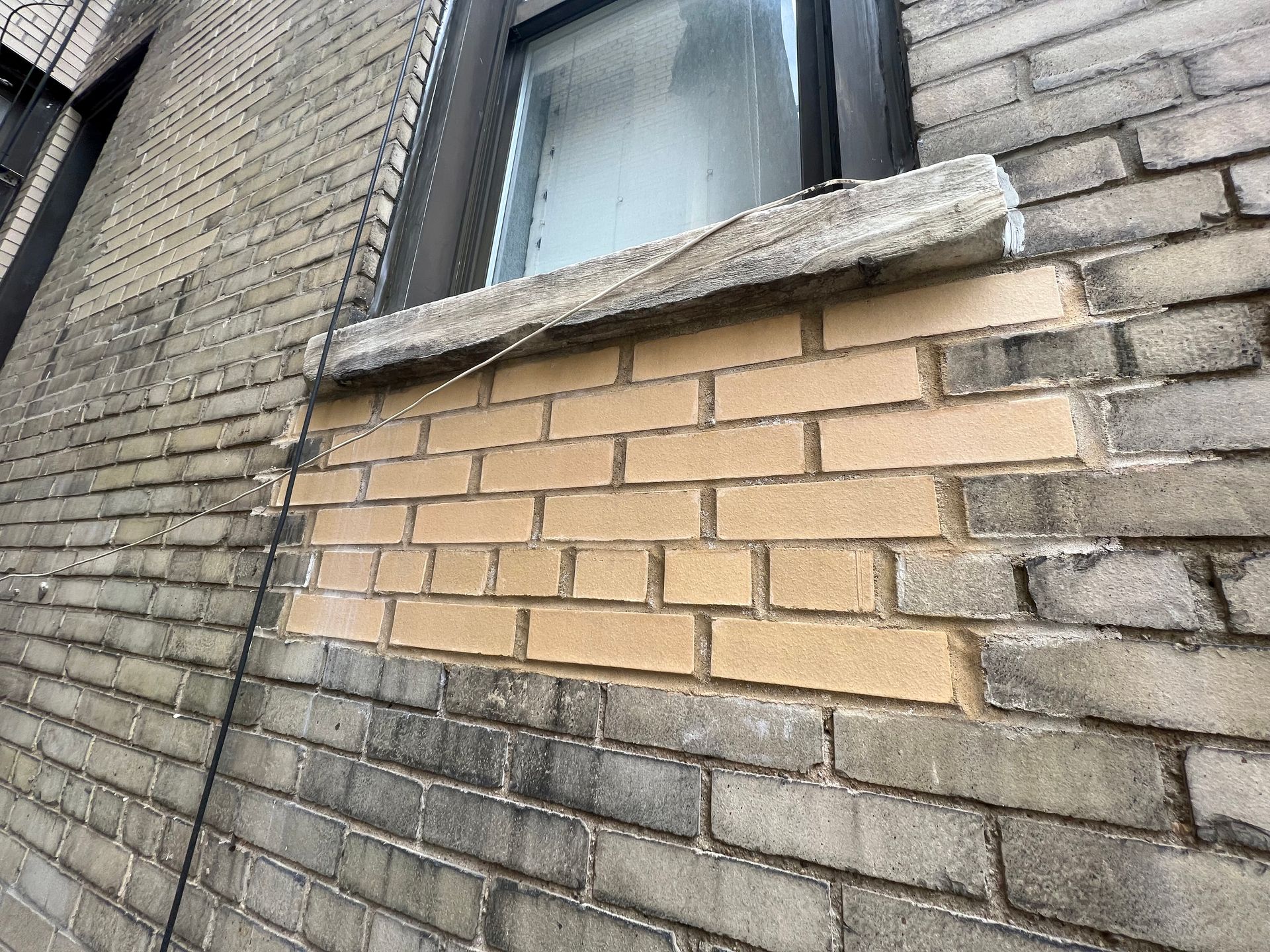

STONE ensured that any/all damaged masonry sections were remediated with new masonry and waterproofing to ensure lasting repairs and water tightness at the building facade.

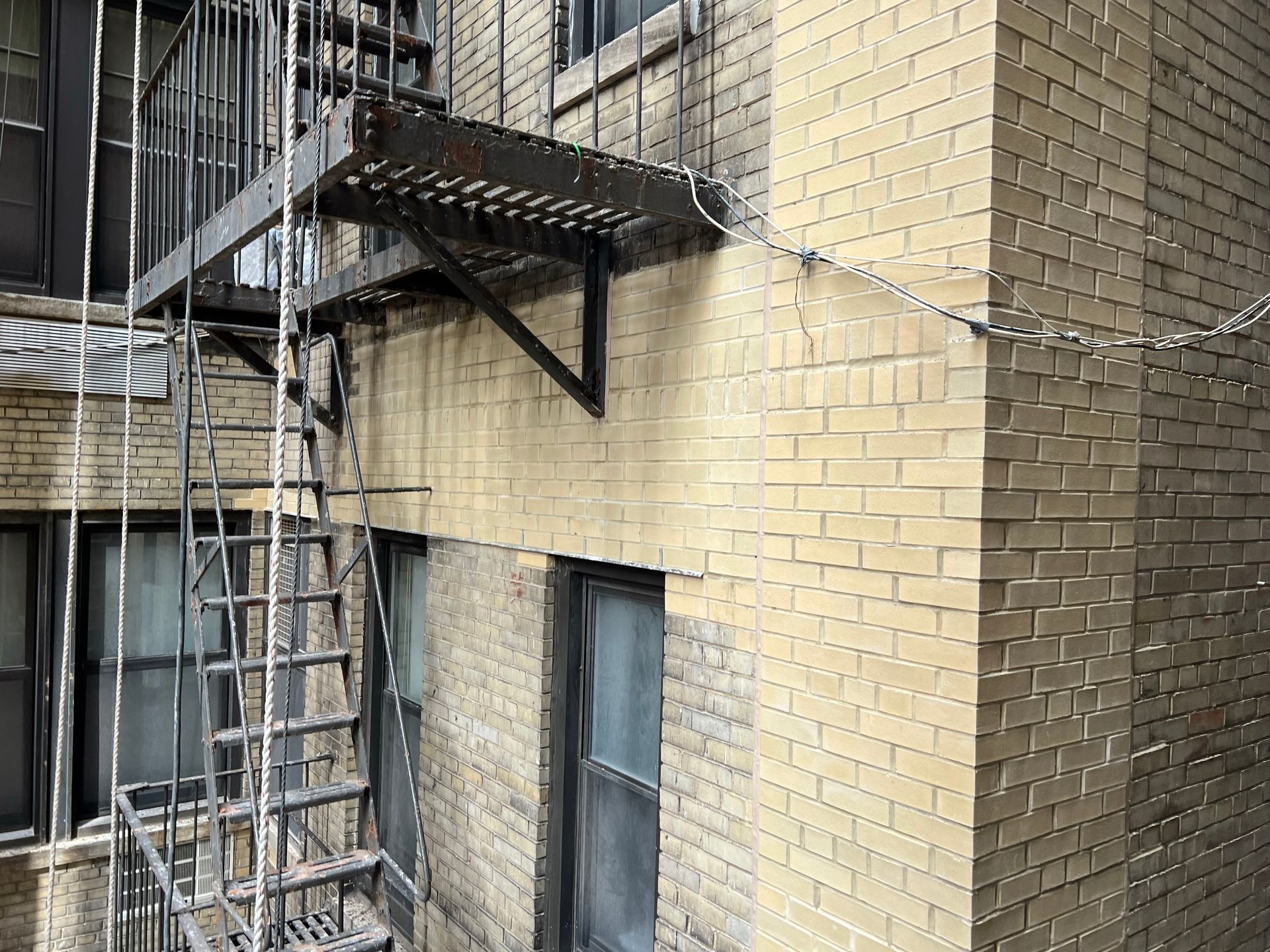

In addition to large scale masonry replacement, STONE also focused on the smaller areas that required attention and remediation due to spalling, cracking, or weathered masonry.

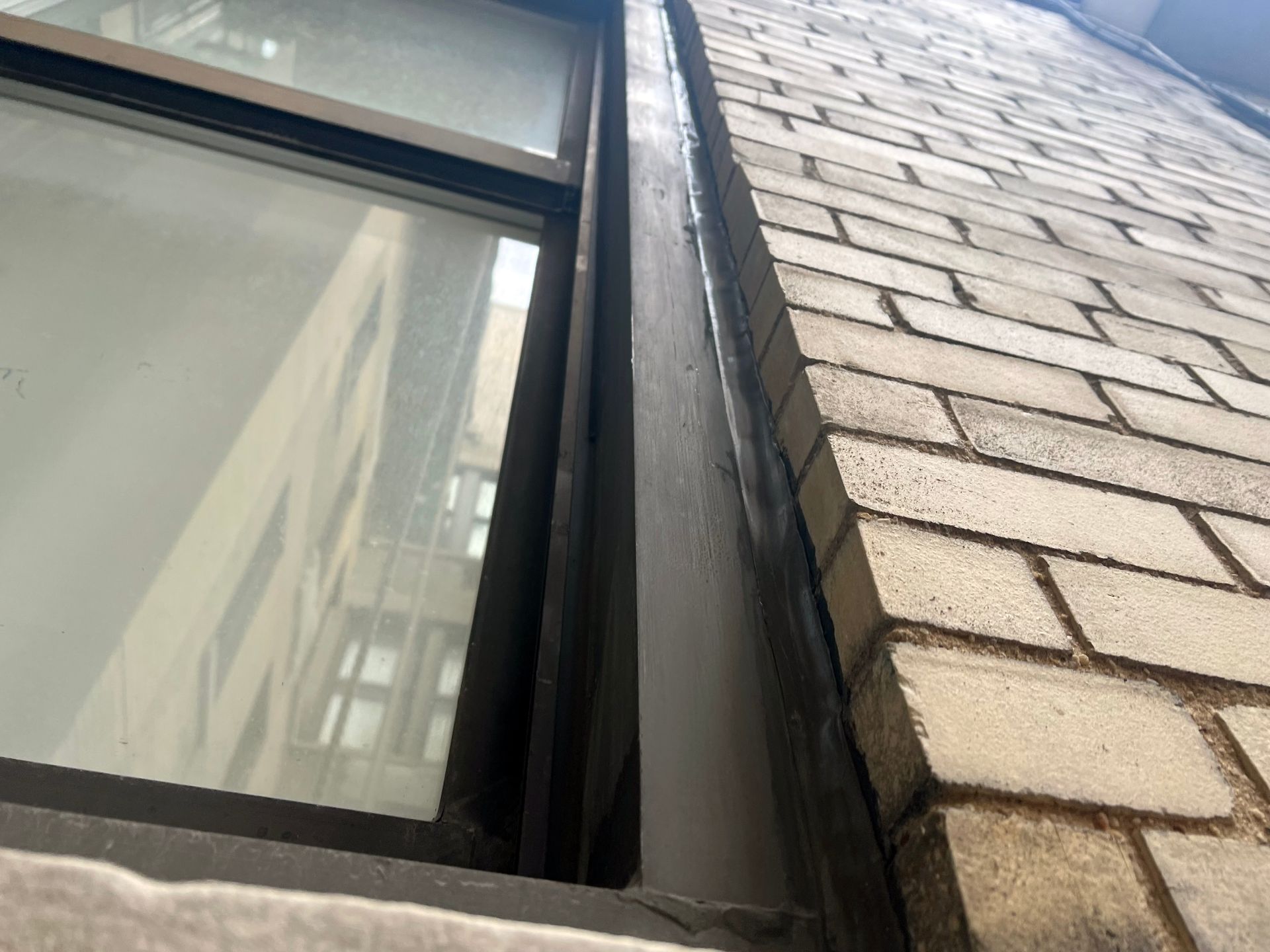

STONE also took into consideration the existing joint sealant at the perimeter of the windows, replacing any existing, cracked, or weathered sealant with new,
